25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts

Name: 25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts
Brand: LIRI ARCHITECTURE
Price: 85 USD

China 25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts wholesale

Brand Name : LIRI ARCHITECTURE

Model Number : EBT25m/600

Certification : ISO9001:2015, SGS, TUV, CFM, IFAI, CE, etc.

Place of Origin : CHINA( Mainland), Guangdong

MOQ : 1 set

Price : 85~155USD/sqm

Payment Terms : Western Union, L/C, T/T

Supply Ability : 100,000sqm/month

Delivery Time : within 30 days

Packaging Details : 1) membrane film. 2) Carton. 3) PVC carry bag.

Fixing Methods : Expandable bolts for concrete base

Application : sporting venues

Side Walls : soft PVC membrane and glass panels

Life Span : over 15 years for the aluminum frame

Width : 25m span width

Side Height : 6000mm

Seasons : 4 Seasons

Roof Color : gray

Sides Color : transparent and dark gray

Contact Now

25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts

Flexibility and easy installation make our clearspan structures a cost-efficient covered solution for sports facilities such as #basketballhall, #footballpitch, #tenniscourt, #padel, #badmintoncourt, #swimmingpool, #horseridingarena...

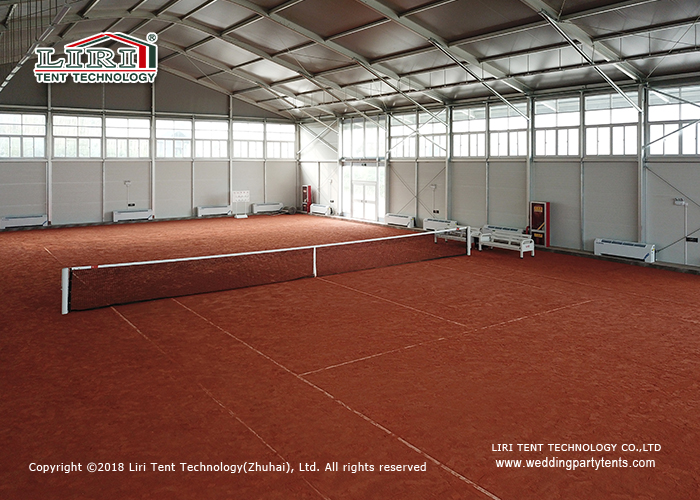

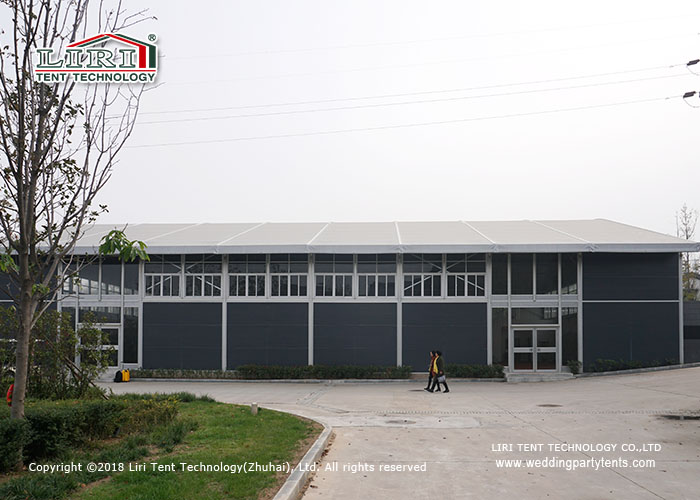

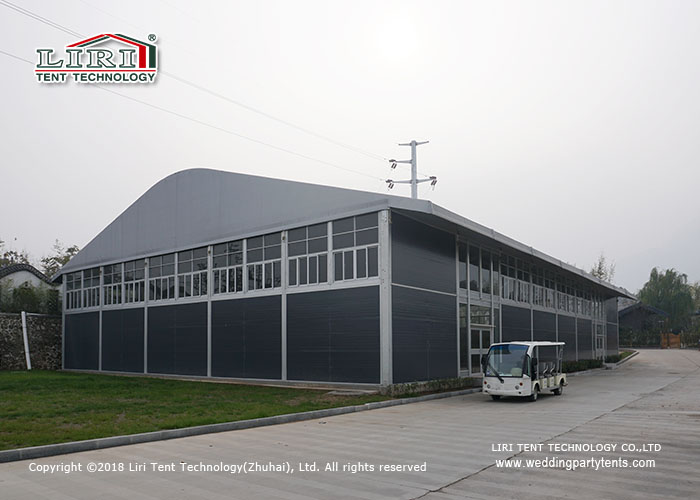

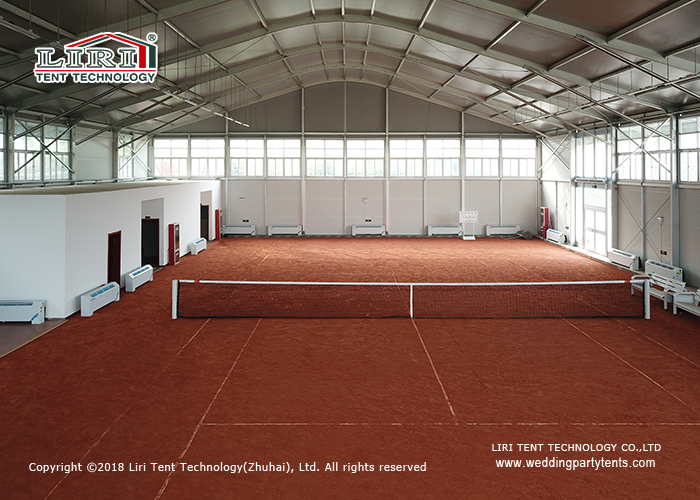

Attached is a well-equipped clearspan structure turning the outdoor clay tennis court into an indoor court, making it possible to play tennis all 4 seasons despite the hot or rainy days.

25m X 40m Dome Roof Arcum Tents For Tennis Courts And Padel Courts

Dimension	Clear Span	Eave Height	Ridge Height	Bay Distance
BT 18	18m	4m	7.06m	5m
BT 20	20m	4m	7.1m	5m
BT 25	25m	4m	7.25m	5m
EBT 30	30m	4m	8.9m	5m
TH 40	40m	4m	10.4m	5m
LH 50	50m	5m	13m	5m
HH 60	60m	5m	14.6m	5m
Main Profile	204x120x4mm, 256x121x5mm, 300x120x5mm...

Specifications & Features

Framework: hard pressed extruded aluminum 6061/T6(15HW) which can last over 20 years.
Roof Cover: high-quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear-resistant, self-cleaning, etc.
Connector: strong hot-dip galvanized steel
Allowed Temperature Condition: -30 degree Celsius~+70 degree Celsius
Wind Loading: max. 100km/h (can be reinforced)
Snow Loading: 30kg/sqm
Easy to be assembled and dismantled, moved from place to place.
No pole inside, 100% available interior space.

Optional Accessories

Windows: transparent PVC fabric, glass windows...
Roof Shape: regular A shape, dome roof, polygonal, curved roof...
Doors: PVC sliding doors, double-wing glass doors...
Wall: soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall, steel plate wall...
Fixing Tools: steel anchors, weight plate, expandable bolts...
Rain Gutters: inner roof beam rain gutter or rain gutter between two similar tents
Other Optional Items: printing, lighting, air conditioning, sports flooring, installation tools, etc.

Packing

Aluminum frame packed in membrane film
Hardware packed in solid carton box
Roof and sidewall in a self-made PVC carry bag
Tailor-made packing is available
