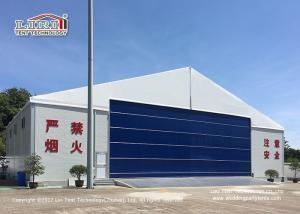

30M Temporary Outdoor Aircraft Airplane Hangar Tent with Hard Wall

Liri Architecture Technology (Guangdong) Co., Ltd

30M Temporary Outdoor Aircraft Airplane Hangar Tent with Hard Wall

Brand Name : Liri

Model Number : BT20

Certification : ISO 9001/SGS/TUV/BV

Place of Origin : Zhuhai, China

MOQ : 1000sqm

Price : USD 30/sqm

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000sqm/month

Delivery Time : 15days

Packaging Details : 1. Membrane Film 2. Carton 3. PVC Carry Bag

Frame : hard pressed extruded aluminium alloy roof

Cover : double PVC-coated polyester textile

Service Life : More than 15 years

Color : available in white, red , green , blue , yellow , black , transparent

Application : exhibition/party/event/trade show/wedding

Contact Now

30M Temporary Outdoor Aircraft Airplane Hangar Tent with Hard wall for Sale

1. Material guarantee for the TFS Aircraft Hangars construction:
1, frame material: Hard pressed extruded aluminum alloy ( GB6063/T5, GB6061/T6 ), sturdy and never rust; Can last 15 to 25 years.

2, Fabric material: 650~850g/sqm double PVC-coated polyester textile, UV-protection, rainproof, anti-fungus, weatherproof, flame retardant (DIN4102 B1/M2);
Steel components: Hot-DIP galvanized steel, the thickness over 60um;

30M Temporary Outdoor Aircraft Airplane Hangar Tent with Hard Wall


2. Certificates&Feature for the TFS Aircraft Hangars construction:
1, 100% relocatable, and unobstructed free span space;
2, very easy and very fast to install and dismantle
3, rainproof, fire retardant, UV-protection, can be environmentally controlled in any climate;
4, our factory operation strictly conducted in accordance with ISO 9001: 2008 quality control standards, we own the CE/SGS (TUV) quality management system certificate.
5, Wind load: 100km/h ( 0.5KN/SQM).


3. Optional for the TFS Aircraft Hangars construction:
1, covers( colourful cover, transparent cover, )
2, windows( dome or square clear PVC windows, mesh window, glass window for glass wall)
3, wooden flooring system(VIP cassette flooring, simple cassette flooring)
4, sidewalls( soft PVC fabric wall, glass wall, ABS hard wall, sandwich panel wall)
5, doors: (double wing glass door, single wing glass door, glass fire door, hard PVC door, rolling shutter(automatic or manual)
6, tent decoration ( roof linings and curtains )
7, furniture ( sofa, tables, chairs, carpet, A/C, fence, etc )
8, fixing methods( anchor, weight plate, weight plate cover)
9, other (lighting, ramp, ventilation system, rain gutter system, digital printing, et)

Model Clear span Length Bay Eave
height
Ridge height
CTH20/400 20m unlimited 5m 3.89m 8.9m
CTH25/400 25m unlimited 5m 3.89m 10m
CTH30/400 30m unlimited 5m 3.89m 11.2m
CTH40/400 40m unlimited 5m 3.89m 13.5m

4. Features & Specification

4.1 Allowed temperature condition: -30 degree Celsius~+70 degree Celsius

4.2 Wind load: max. 120km/h (can be reinforced)
4.3 Snow load: 75kg/sqm (snow can't stay if use big degree roof design)

4.4 Easy to be assembled and dismantled, removeable

4.5 No pole inside, 100% room is available
4.6 Sizes can be customized(like side/leg height)

30M Temporary Outdoor Aircraft Airplane Hangar Tent with Hard Wall

5. Optional accessories


5.1 covers: colourful cover, transparent cover, inflatable roof cover
5.2 Film insulated roof cover

5.3 Insulated sandwich panel walls

5.4 Large span flexible lifting doors

5.5 colorful steel walls

5.6 rain gutters (inner roof beam rain gutter or rain gutter between two tents)
5.7 LED lighting

5.8 Working doors

5.9 Rolling Doors

5.0 Flooring system

5.11 Fire-fighting systems,ect.

3. Optional Fixing methods

6.1 Ground anchor(steel peg): For soft ground surface like, earth, sand, lawn, etc.

6.2 Inflatable screw: For hard surface like, cement, stone, or prefab concrete cubic, etc.

6.3 Weight plate: For protective ground surface like marble, ceramic & tiles, asphalt, brick, etc.

6.Material

3.1 Frame : hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.

3.2 Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.

3.3 Connecter: strong hot-dip galvanized steel, zinc thickness over 80um

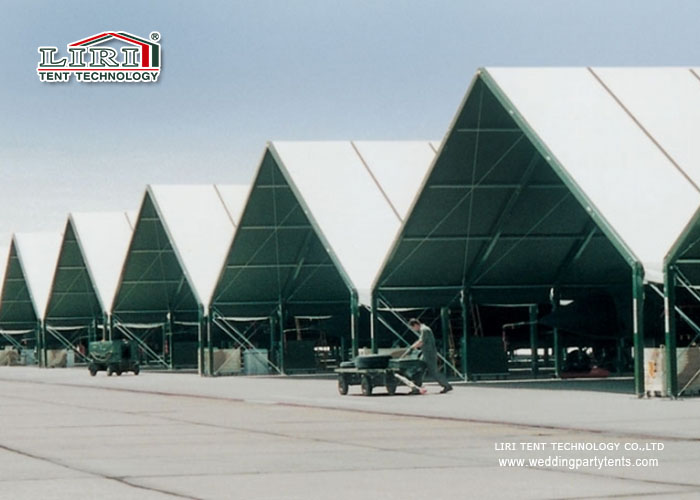

7. Application of Aircraft Hangar Tent

Widely used as temporary or permanent aircraft hangar tents, airport cargo,and so on. It is the best choise for the Naval Aviation and Civil Aviation using for light aircrafts.

8. Our service

10.1 We can help you to book hotel and tickets to make your visiting to us more convenient.

10.2 Car service, if you want to visit us and are near Zhuhai city, we can send a car to pick you up so you can come to visit Liri Tent easily.

10.3 After sale service is always available, we maintain very good reputation all over the world, and we offer after sale service to our clients, like installation instructions, replacement of flaw parts, upgrade of tents, renew tent parts, tent warehousing guidance, etc.

10.4 We can also provide furniture, lighting and specialized AC system to you.
